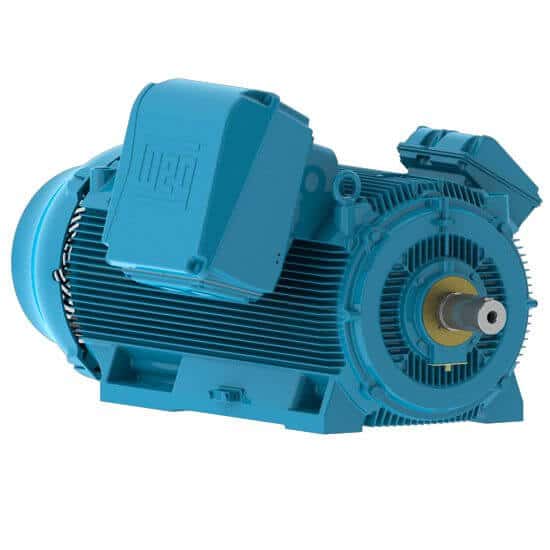

Elektromotor WEG HGF
Elektromotor HGF355 6000V

Elektromotory WEG – HGF – NN a VN

Katalogové číslo: Elektromotory HGF Kategorie: Štítky: ,

Popis produktu

  • Output: 90 kW to 3150 kW
  • Number of poles: 2, 4, 6, 8, 10 and 12
  • Frame sizes: 315 to 630
  • Frequency: 50 Hz
  • Voltage: 380 to 6600 V
  • Service factor: 1.00
  • Insulation: Class F (DT 80K)
  • Degree of protection: IP55
  • Mounting: B3
  • Cooling Method: TEFC – IC411
  • Encloure material: FC-200 cast iron
  • Fan covers: FC-200 cast iron for frames up to 400 and steel for frames 450 and above
  • Fans: Aluminum for frames up to 500 and steel constructed for frames 560 and above
  • Terminal Box: FC-200 cast iron
  • Accesories terminal box: FC-200 cast iron
  • Thermal protections:
    • Windings: 3-wire PT-100, 2 per phase
    • Bearings: 3-wire PT-100, 1 per bearing
  • Bearings:
    • Grease lubricated ball bearings for frames up to 500
    • Grease lubricated roller bearings for frames 560 (in 4, 6, 8, 10 and 12 pole)
    • Insulated non-drive end bearing for frames 400 and above
  • Bearing seals:
    • For grease lubricated bearings: Labyrinth seal
    • For oil lubricated bearings and sleeve bearings: Mechanical seal
  • Vibration: Grade A
  • Balancing: with half key
  • Shaft locking device for bearings protection
  • Nameplate: AISI 304 stanless steel (laser recorded)
  • Drain: Automatic plastic plug
